The ESCO Maximum Force Air Bag Jack is a low-profile, reinforced inflatable lifting system designed for use in extremely tight or confined spaces. Built from multiple layers of aramid fiber, it provides high-strength lifting capability while maintaining a compact form factor for restricted-access environments.
This system is commonly used in industrial, transportation, and emergency recovery applications where traditional lifting equipment cannot fit.

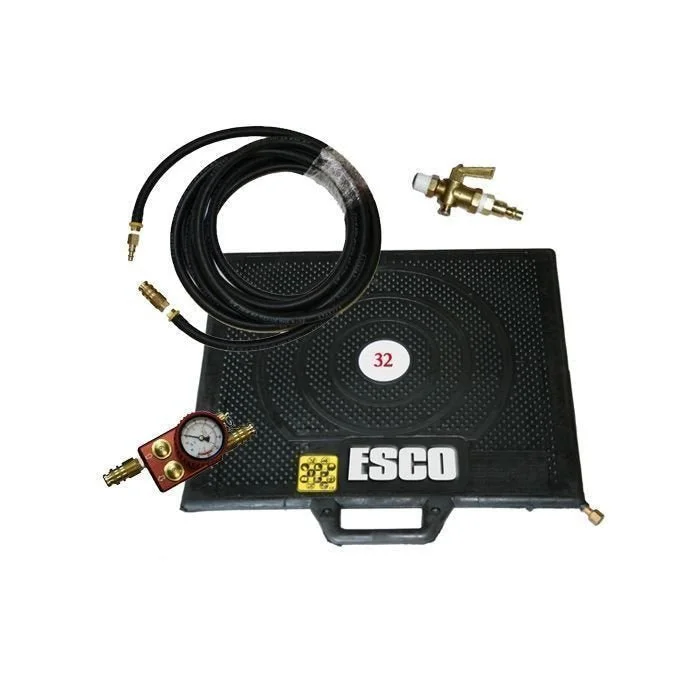

Kit Includes
- 32 Ton Air Bag Jack

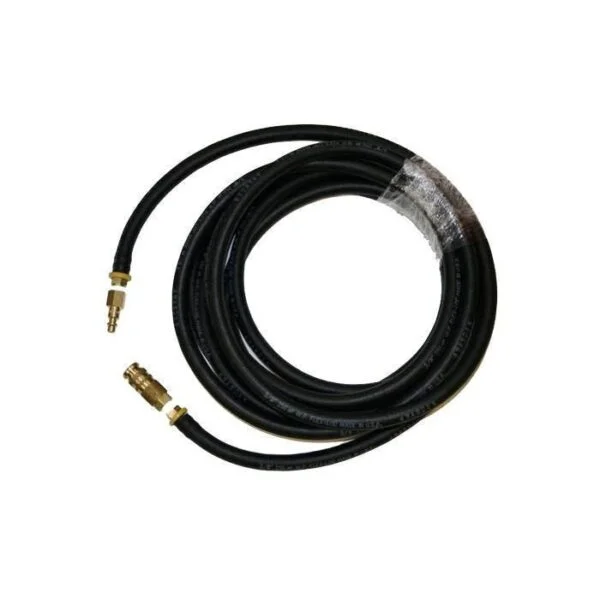

- 20 ft air bag hose with couplers
- Single safety relief and control valve
- Nipple and industrial nipple with valve
Key Features
- Ultra-thin inflatable jack design
- Operates in spaces with as little as 1-inch clearance
- Multi-layer aramid fiber reinforced construction
- Suitable for industrial, rail, mining, rescue, military, agricultural, and OTR applications
- Designed for high-capacity lifting in confined environments
Specifications
- Lifting Capacity: 32 tons
- Dimensions: 21″ × 25″ × 1″ (534 × 635 × 25 mm)
- Maximum Inflation Height: 12″ (305 mm)
- Weight: 32 lb (15 kg)
