ESCO 22 Ton Air Bag Jack Kit

The ESCO Maximum Force Air Bag Jack is a thin-profile, reinforced inflatable lifting system designed for use in tight or confined spaces with minimal clearance. It is constructed from multiple layers of aramid fiber for strength and durability and is used in industrial, transportation, and emergency lifting applications.

Key Features

• Thin-profile inflatable air bag jack design
• Operates in confined spaces with as little as 1-inch clearance
• Multi-layer aramid fiber construction for strength and durability
• Suitable for industrial, rail, mining, rescue, military, agricultural, and OTR applications
• Designed for heavy-duty lifting in restricted-access environments

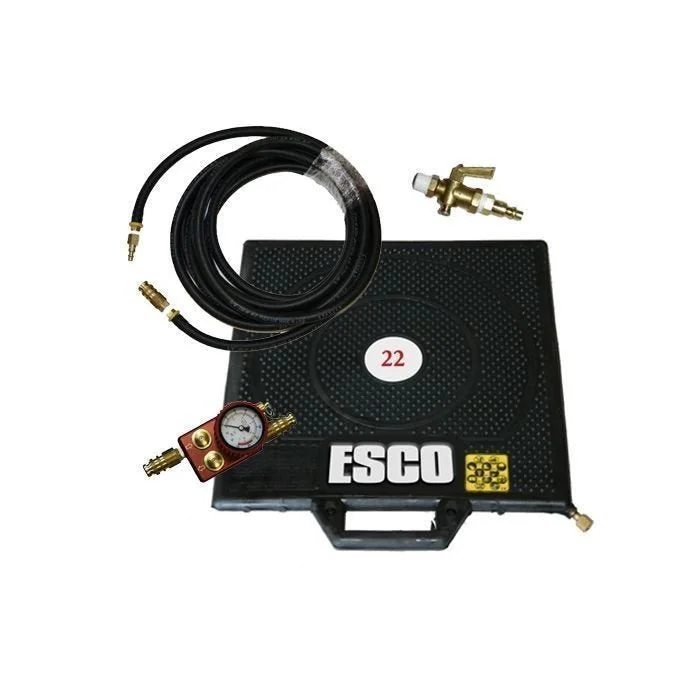

Kit Includes

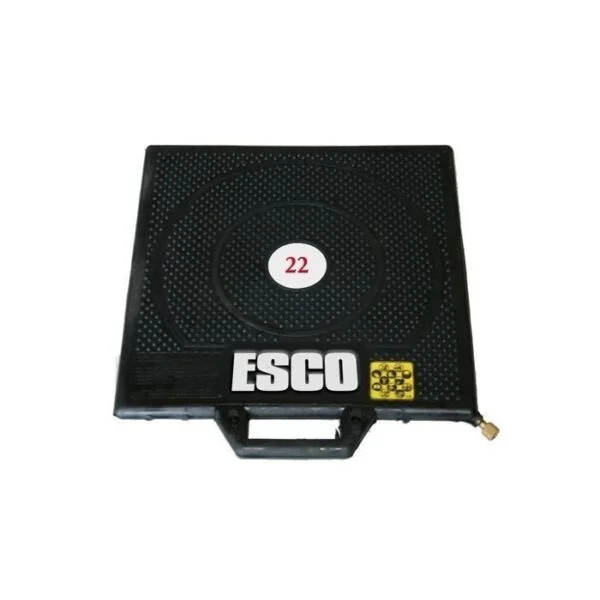

• ESCO #12107 – 22 Ton Air Bag Jack

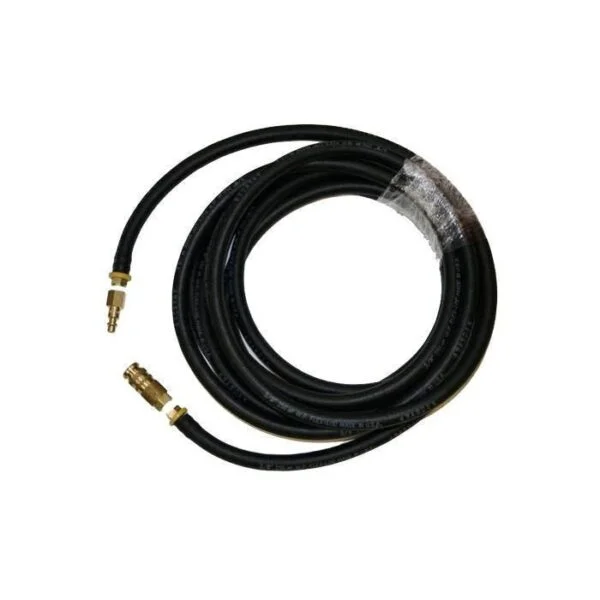

• ESCO #12122 – 20 ft air bag hose with couplers
• ESCO #12119 – Safety relief and control valve
• ESCO #12123 – Nipple and industrial nipple with valve

Specifications

• Lifting Capacity: 22 tons
• Dimensions: 20″ × 20″ × 1″ (508 × 508 × 25 mm)
• Maximum Inflation Height: 9.5″ (241 mm)
• Weight: 28 lb (13 kg)
