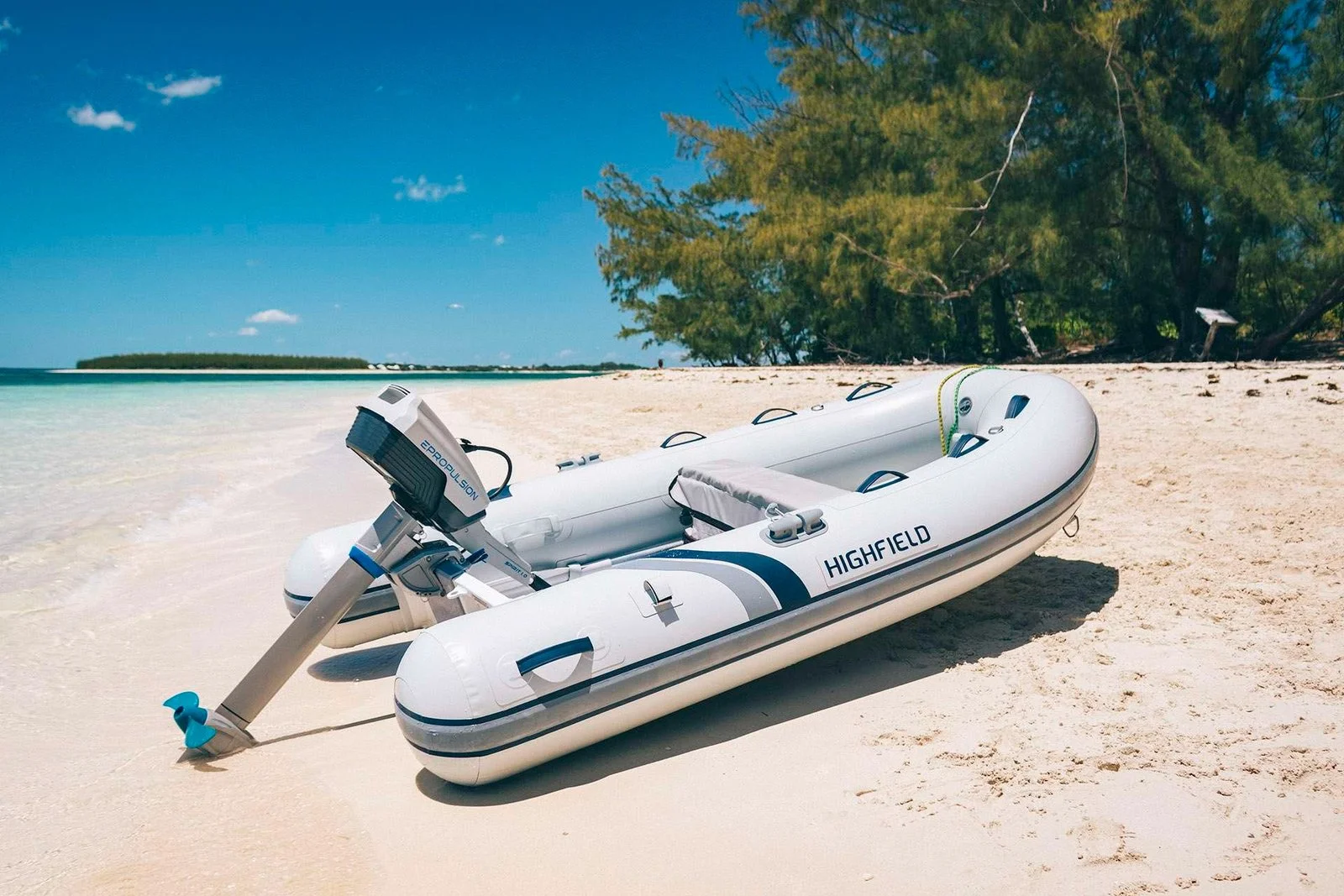

The Spirit 1.0 Plus is a portable 1kW electric outboard motor designed for small boats including dinghies, fishing boats, sailboats, and tenders. It uses an integrated lithium battery system to provide clean and quiet propulsion for marine use.
The system features a 1276Wh lithium-ion polymer battery and a brushless direct-drive motor for efficient and low-maintenance operation. It is designed to be lightweight and portable while providing reliable range and performance.
Key Features
- 1 kW electric outboard motor
- Integrated 1276 Wh lithium-ion polymer battery
- Brushless DC direct-drive motor
- Portable and lightweight design
- Suitable for dinghies, fishing boats, sailboats, and tenders
- External battery support available (E-Series compatible)
Specifications
- Power: 1 kW
- Input Voltage: 39V – 60V
- Battery: Spirit Battery Plus (1276 Wh lithium-ion polymer)
- Motor Weight: 23.4 lb (10.6 kg)
- Battery Weight: 19.2 lb (8.7 kg)
- Charging Time: 8.5 hours (standard charger), 3.5 hours (fast charger)
- Propeller: 11″ × 5.8″ 2-blade composite
- Trim/Tilt Angles: 0°, 7°, 14°, 21° / 70°
- Shaft Options: Extra Short, Short, Long
- Motor Type: Brushless DC
- Drive Type: Direct drive
