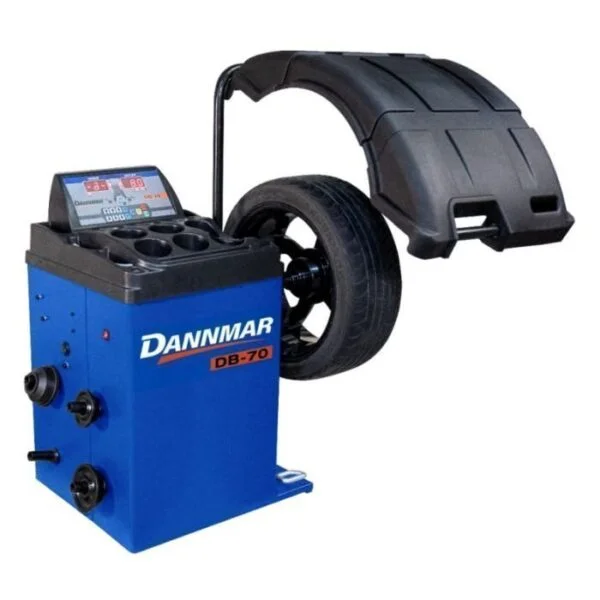

The Dannmar DB-70 is a professional-grade automatic wheel balancer designed for tire shops and automotive service centers, providing fast, accurate balancing for passenger and light truck wheels.
General Capability
Wheel diameter capacity: 10″ – 28″
Tire diameter capacity: up to 49″
Tire weight capacity: up to 150 lbs
Wheel width capacity: 1.5″ – 20″
Performance
Cycle time: ~7 seconds per balance
Balancing speed: 260 RPM
Accuracy: ±1 gram (0.035 oz)
Low noise operation: <70 dB
Balancing Modes
6 dynamic balancing modes
1 static balancing mode

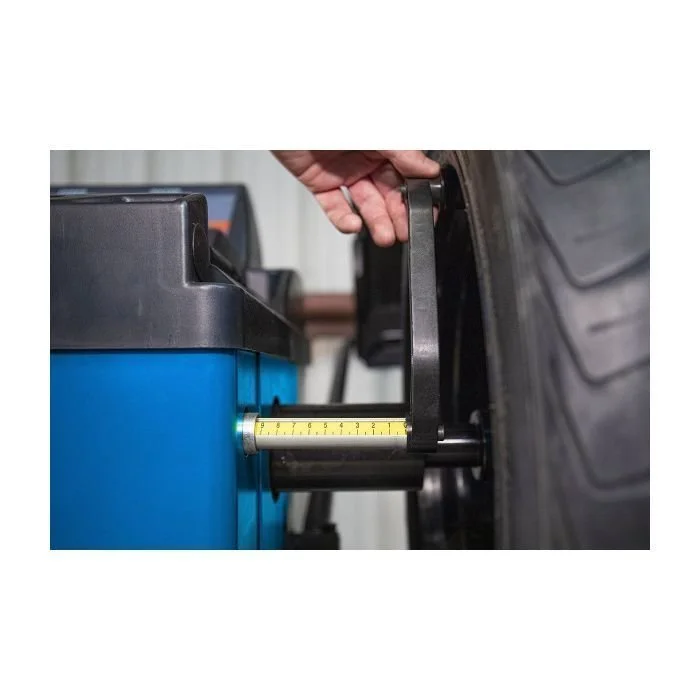

Manual wheel offset distance setting
Automatic calculation of required weights
Controls & Operation

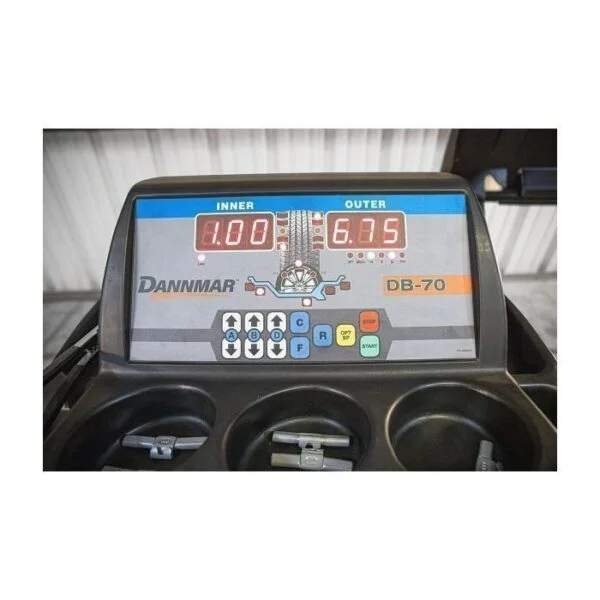

Digital touch-pad control panel
LED weight position indicators
Automatic start when hood is lowered

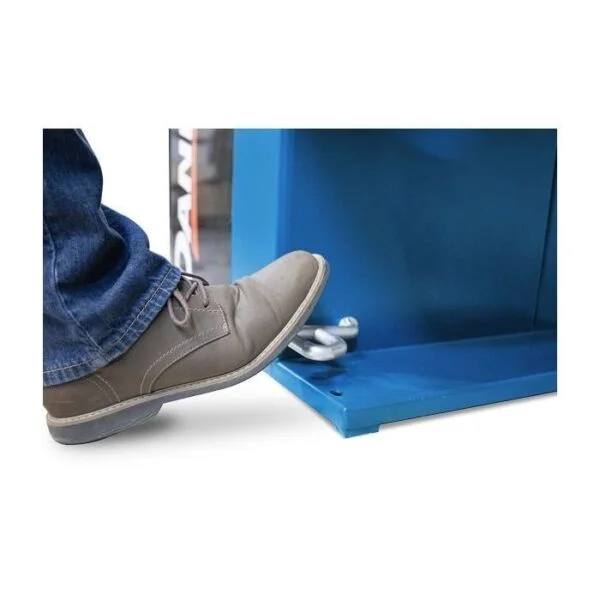

Foot pedal brake system for wheel holding
Quick-release hub nut system for faster setup
Mechanical System
Direct-drive / serpentine poly-V belt system
Precision sensor-based measurement system
Multi-size cone adapter system included
No-mar mounting components for rim protection
Power Requirements
110–230 VAC, single-phase (50–60 Hz)
Construction & Design
Heavy-duty steel shop equipment design
Built for continuous professional use
Designed for automotive and tire shop environments
Warranty
1-year limited warranty (structure and components)
Includes limited freight coverage for warranty service
Key Takeaway
The DB-70 is a commercial tire shop machine, built for:
Fast wheel balancing (≈7 seconds)
High accuracy for passenger + light truck wheels
High-volume shop environments
Professional tire installation services
