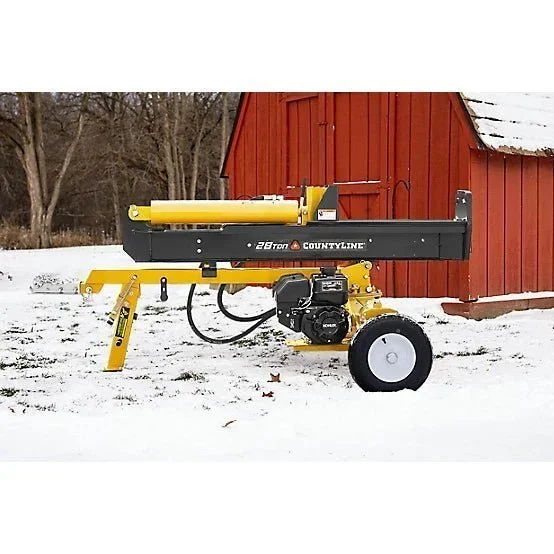

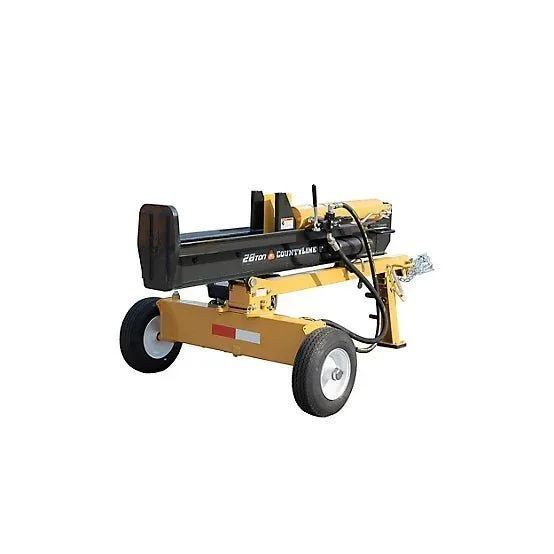

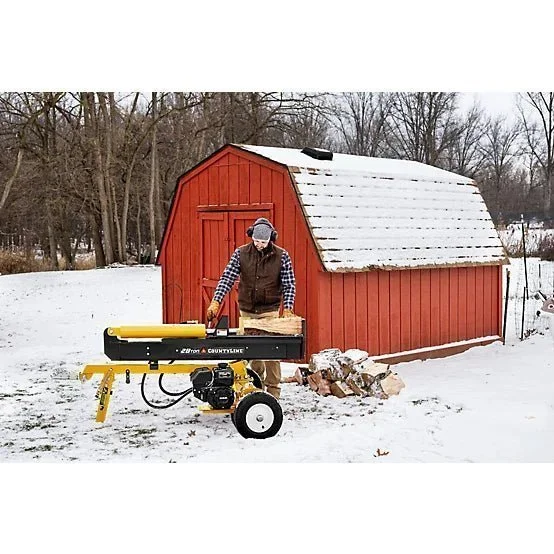

The CountyLine 28-Ton Log Splitter is a heavy-duty gas-powered hydraulic splitter designed for homeowners and property owners who regularly process firewood. With strong splitting force, fast cycle time, and vertical/horizontal operation, it is built for efficient handling of both small and large logs.
Engine & Power System
- Engine: Kohler SH270 Series (196cc, 4-cycle)
- Horsepower: 6.5 HP
- Torque: 10.2 ft-lbs
- Pump: 14 GPM two-stage hydraulic pump
- Hydraulic pressure: up to 3,800 PSI
- Fuel tank capacity: 3.3 L
- Oil recommendation: Kohler 10W-30
Performance
- Splitting force: 28 tons
- Cycle time: ~13 seconds
- Designed to split tough hardwoods and large-diameter logs
- Suitable for high-volume firewood production
Operation & Design
- Horizontal and vertical splitting modes
- Self-locking ground stand for stability during use
- Vertical operation reduces heavy lifting strain for large logs
- Automatic return cycle for faster workflow
Mobility & Build
- Heavy-duty steel frame construction
- 16″ DOT-approved pneumatic tires for towing
- 2″ ball coupler for transport
- Portable design for field or property use
Capacity
- Max log length: 26 in
- Max log diameter: up to 36 in (recommended range: 21–30 in)
- Machine weight: 492 lb
Dimensions
- Height: 39.37 in
- Length: 90.55 in
- Width: 47.64 in
Key Features
- 28-ton hydraulic splitting force
- Fast 13-second cycle time
- Dual orientation (horizontal/vertical)
- Heavy-duty steel construction
- Automatic return system
- Easy maintenance engine access
Warranty
- 5-year warranty on materials and workmanship
- 3-year engine warranty
- 3-year hydraulic system warranty
Ideal For
- Homeowners with large wood lots
- Rural properties and farms
- Firewood preparation for heating or resale
