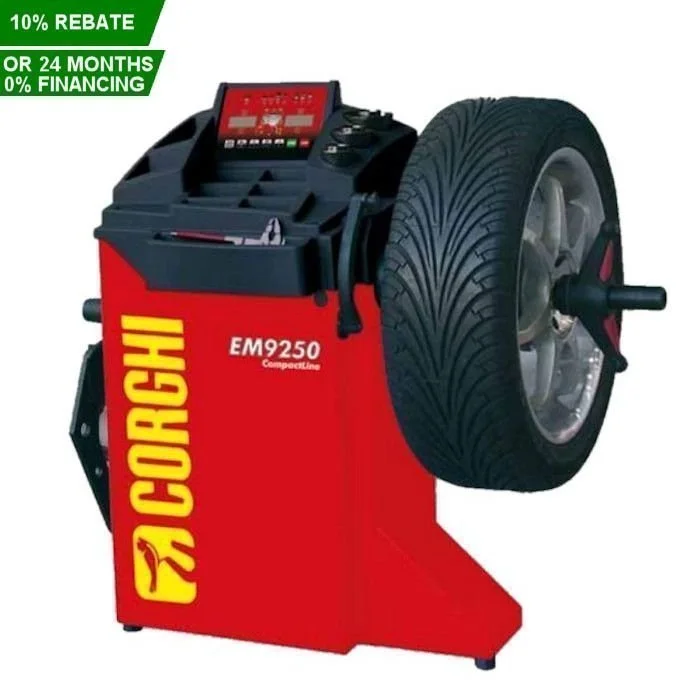

The Corghi USA EM9250 CompactLine is a professional-grade wheel balancing machine designed for workshops that require fast, accurate, and efficient tire balancing. It features a dual digital display system and advanced automatic measurement functions for streamlined operation.
Key Features
Control & Interface
- Double digital display control panel for quick mode selection
- Intuitive access to common balancing functions
- Ergonomic weight tray for tools and counterweights
Performance & Spin System
- High-performance spin unit derived from B-Series technology
- Reduced cycle time for faster operation
- Balances wheels up to 165.3 lbs (75 kg)
- Supports inside offset balancing up to 10.8″ without spacers
- Maintenance-free drive system for long-term reliability
Smart Measurement System
- Electronic input of wheel diameter and distance
- FSP Smart Arm system for automatic program activation
- Auto Width Calculation (AWC)
- Multiple adhesive weight placement methods:
- Manual (12 o’clock)
- 6 o’clock laser-assisted (*)
- Weight holder clip (*)
Advanced Balancing Functions
- Hidden weight program (conceals adhesive weights behind spokes)
- Opt Flash system reduces road noise by optimizing tire position
- LED work light for improved visibility during operation
- Laser pointer assists precise weight placement
- Automatic positioning system improves workflow efficiency
Support & Handling
- Front support base allows balancing without floor anchoring
- Stable handling of wheels up to 110.2 lbs without machine fixation
- Compact, workshop-friendly design
Specifications
- Power supply: 115V / 230V, 1Ph, 50/60Hz
- Power consumption: 100 W
- Spin speed: 90–130 rpm
- Measurement accuracy: 1 g
- Average cycle time: ~7 seconds
- Shaft diameter: 40 mm (1.57″)
- Rim width range: 1.5″–20″
- Rim diameter range: 1″–35″ (setting), 10″–28″ (measured)
- Max wheel width: 23.6″ (600 mm)
- Max wheel diameter: 44″ (1117 mm)
- Max wheel distance: 10.82″ (275 mm)
- Max wheel weight: 165 lbs (75 kg)
- Machine weight: 174.2 lbs (79 kg)
Warranty
- 3 years parts
- 1 year labor
- Excludes consumables (pads, hoses, rollers, etc.)
- Damage from misuse, electrical issues, or improper maintenance not covered
Applications
- Tire shops and automotive service centers
- Fleet maintenance facilities
- Professional wheel and tire service operations
