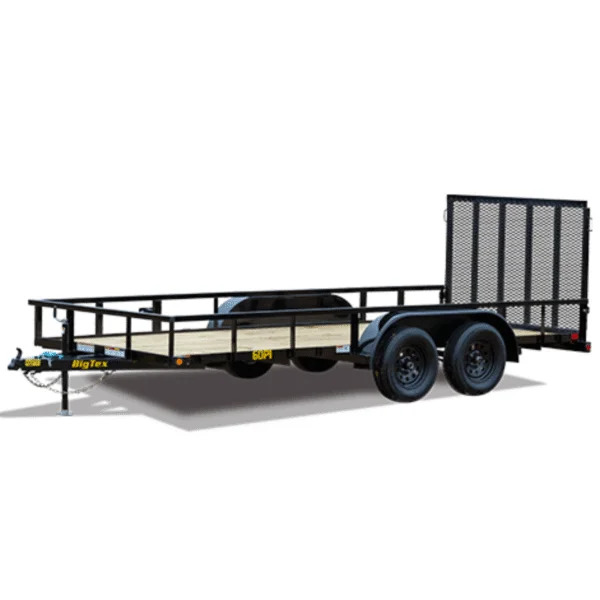

The Big Tex 60PI is a heavy-duty tandem-axle utility trailer designed for hauling light-duty equipment, side-by-sides, compact tractors, landscaping equipment, and general cargo. Built with a reinforced pipe-top rail, durable steel frame, treated wood flooring, and tandem axles, it delivers the strength, stability, and versatility needed for both commercial and personal hauling applications.
Key Specifications
| Feature | Specification |
|---|---|
| GVWR | 6,000 lbs |
| GAWR | 3,500 lbs per axle |
| Axles | (2) Premium 3,500 lb cambered axles with quick-lube hubs |
| Suspension | Multi-leaf spring with equalizer |
| Brakes | Electric brakes (front axle standard; dual-axle braking available) |
| Deck Width | 77 in. between fenders |
| Available Lengths | 12 ft., 14 ft., 16 ft. |
| Frame | 3″ × 2″ × 3/16″ steel angle main frame and cross-members |
| Top Rail | 2″ × 2″ square-tube pipe-top rail |
| Floor | Treated pine or Douglas fir |
| Coupler | 2″ A-frame coupler (optional 2-5/16″ forged coupler available) |
| Jack | 2,000 lb top-wind set-back jack with removable sand foot |
| Tires | ST205/75R15 Load Range C radial tires |
| Wheels | 15″ × 5″ steel wheels |
| Lighting | LED stop, tail, turn, and clearance lights |
Model Variants
| Model | Bed Length | Empty Weight | Approx. Payload |
| 60PI-12 | 12 ft. | ~1,265 lbs | ~4,735 lbs |
| 60PI-14 | 14 ft. | ~1,400 lbs | ~4,600 lbs |
| 60PI-16 | 16 ft. | ~1,535 lbs | ~4,465 lbs |
Payload is calculated by subtracting trailer weight from the 6,000 lb GVWR. Actual capacity varies depending on installed options and cargo distribution.
Features & Benefits
- Heavy-duty tandem axle design provides improved stability, smoother towing, and greater load capacity than comparable single-axle trailers.
- Reinforced 2″ × 2″ square-tube pipe-top rail enhances structural rigidity while helping contain cargo.
- Durable treated wood flooring withstands years of everyday hauling.
- Rugged steel frame is built for demanding commercial and residential use.
- Four integrated tie-down loops help secure equipment and cargo safely.
- LED lighting system improves visibility while requiring minimal maintenance.
- Quick-lube hubs simplify routine service and reduce maintenance time.
- Optional rear ramp gate with spring assist or slide-in ramps allows easy loading of equipment and utility vehicles.
- Adjustable coupler options provide compatibility with a wide range of tow vehicles.
Ideal Applications
- UTV and side-by-side transport
- Compact tractor hauling
- Lawn and landscape equipment
- Utility vehicles and ATVs
- Small construction equipment
- Property maintenance
- Rental fleet operations
- General utility hauling
