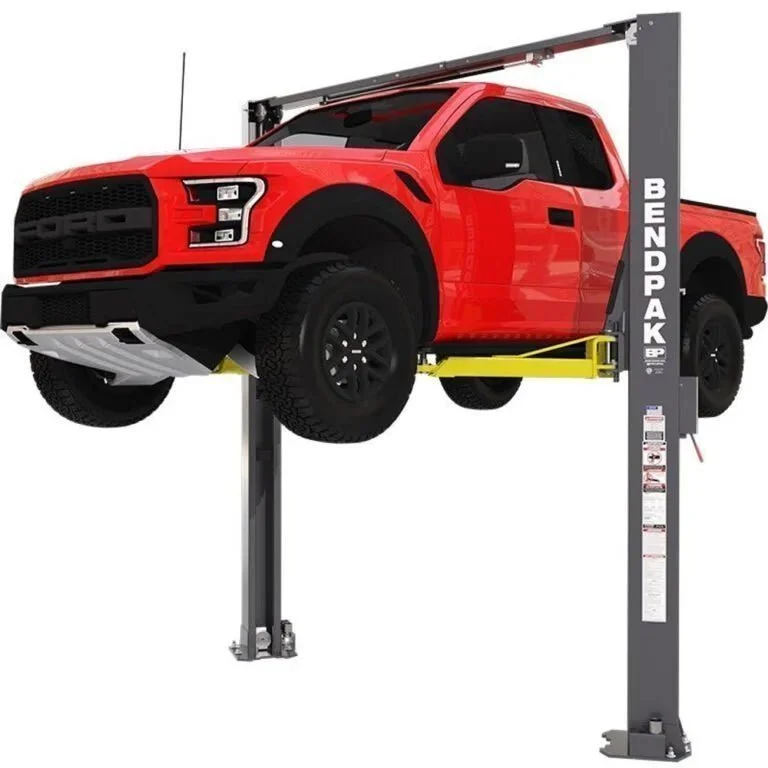

The BendPak XPR-10AXLS is an extended-height, professional-grade 10,000-pound asymmetric two-post lift engineered for technicians who demand greater working clearance without sacrificing lifting performance or safety. Designed with 6 inches of additional lifting height and a massive 75-inch cylinder stroke, the XPR-10AXLS allows taller mechanics to work comfortably beneath fully raised vehicles, reducing fatigue and improving productivity.
Built with BendPak’s advanced Direct-Drive hydraulic lifting system, oversized lift carriages, and triple-telescoping lift arms, this ALI-certified lift provides exceptional versatility for servicing passenger cars, performance vehicles, SUVs, and light-duty trucks.
Features
- 10,000 lb. lifting capacity
- Extended-height design provides 6 inches of additional lifting height
- Massive 75-inch hydraulic cylinder stroke
- Asymmetric lift configuration for improved vehicle access
- ALI Certified
- Direct-drive hydraulic lifting system
- Dual low-pressure HVLP hydraulic cylinders
- Expandable overhead beam for narrow or wide drive-through installation
- Triple-telescoping front lift arms
- Two-stage telescoping rear lift arms
- Exclusive Tru-Metric® arm positioning system
- Drop-end lift arms provide lower pad height for low-profile vehicles
- Double-telescoping screw pads
- 63 mm stackable adapter set included
- Oversized 59-inch lift carriages for superior stability
- Single-piece steel columns
- Automatic arm restraints
- Single-point safety lock release
- Safety locks every 3 inches
- Heavy-duty 1/2-inch aircraft-quality equalizer cables
- Large cable sheaves reduce cable fatigue
- Self-lubricating UHMW polyethylene load bearings
- Large 17″ × 19″ A36 steel base plates
- Padded automatic overhead shutoff bar
- Electric-over-hydraulic power system
Benefits
- Extra lifting height improves comfort for taller technicians
- Greater clearance beneath trucks and SUVs
- Low-profile lift pads accommodate sports cars and lowered vehicles
- Triple-telescoping arms fit a wide variety of wheelbases
- Smooth hydraulic lifting with fewer moving parts
- Commercial-grade construction for years of heavy-duty service
Specifications
| Feature | Specification |
|---|---|
| Model | XPR-10AXLS |
| Lift Type | Asymmetric Two-Post Lift |
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Maximum Front Axle Capacity | 5,000 lbs. |
| Maximum Rear Axle Capacity | 5,000 lbs. |
| Maximum Load Per Arm | 2,500 lbs. |
| Overall Height | 157 in. (3,983 mm) |
| Overall Width (Narrow) | 137 in. |
| Overall Width (Wide) | 145 in. |
| Outside Column Width (Narrow) | 126¾ in. |
| Outside Column Width (Wide) | 139¾ in. |
| Inside Column Width (Narrow) | 105.5 in. |
| Inside Column Width (Wide) | 118.5 in. |
| Drive-Through Clearance (Narrow) | 93 in. |
| Drive-Through Clearance (Wide) | 106 in. |
| Front Arm Reach | 23.5–45.5 in. |
| Rear Arm Reach | 42.5–60 in. |
| Minimum Pad Height | 4.25–6.75 in. |
| Lift Rise | 75 in. |
| Maximum Lift Height (Pads Only) | 79–81 in. |
| Maximum Lift Height (With 3″ Adapters) | 81.5–83.5 in. |
| Motor | 220 VAC, 60 Hz, Single Phase |
| Full Rise Time | Approximately 55 Seconds |
Advanced Direct-Drive Hydraulic System
The XPR-10AXLS utilizes BendPak’s Direct-Drive hydraulic technology, eliminating traditional chain-over lifting mechanisms for smoother operation and improved long-term reliability.
- Dual HVLP hydraulic cylinders
- Fewer moving components
- Smooth, even lifting
- Reduced maintenance requirements
- Dual synchronized equalizer system for balanced lifting
Heavy-Duty Construction
Built for demanding commercial environments, the XPR-10AXLS features:
- One-piece structural steel columns
- Oversized 59-inch lift carriages
- Heavy-duty aircraft-grade equalizer cables
- UHMW maintenance-free load bearings
- Durable A36 steel base plates
- Commercial-grade telescoping lift arms
Safety Features
- ALI Certified
- Automatic arm locking restraints
- Single-point safety release
- Automatic overhead shutoff bar
- Mechanical safety locks every 3 inches
- Heavy-duty synchronized cable system
- Low-profile frame contact pads with polyurethane inserts
Ideal Applications
Designed to service a wide variety of vehicles, including:
- Passenger cars
- Sports cars
- Lowered vehicles
- Performance cars
- SUVs
- Pickup trucks
- Light commercial vehicles
- Fleet service vehicles
Professional Performance with Extra Working Height
The BendPak XPR-10AXLS delivers everything professionals expect from a premium two-post lift, with the added advantage of extended lifting height for improved ergonomics. Its heavy-duty direct-drive hydraulic system, oversized lift carriages, versatile telescoping arms, and ALI-certified safety features make it an excellent choice for commercial repair facilities, performance shops, dealerships, and advanced home garages with ceiling heights of at least 13 feet. Designed for maximum durability, versatility, and technician comfort, the XPR-10AXLS sets the standard for extended-height 10,000-pound two-post lifts.
