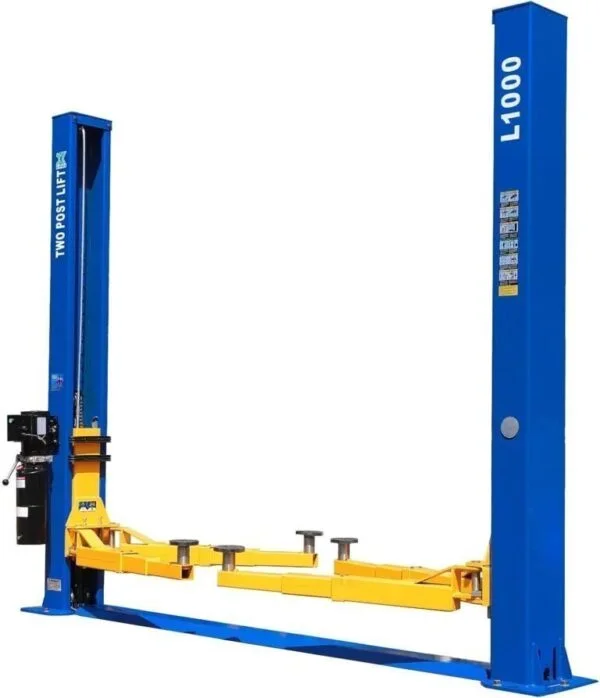

The 10,000 LB Capacity L1000 2 Post Car Lift is a heavy-duty lift designed for automotive service and repair shops. It has a lifting capacity of 10,000 lbs, making it suitable for a wide range of vehicles. The lift features a two-post design and an open top, providing easy access to the undercarriage of the vehicle. Its hydraulic operation provides smooth and controlled lifting, making maintenance and repair work on vehicles more efficient. The lift’s heavy-duty construction provides reliable and long-lasting performance.
FEATURES
Safety Mechanism:
- Double Point Safety Lock Release
- Automatic arm lock restraints
- Relief valve built into power pump to prevent overloading
- Door guard protection rubber
- Heavy-duty 5/16″ diameter cable and 4.56″ pulley reduce stress on synchronization system and increase cable life
- Stiffened base plate (5/8″ thickness)
- Ultra high molecular self-lubricating nylon slider for smooth carriage movement
- Anchor bolts / mounting hardware included
Control System:
- Lifting operation via “UP” button on motor
- Manual lowering operation via lever
- Relief valve built into power pump to prevent overloading
- 1 set truck adapters included
SPECIFICATIONS
- Lifting Capacity: 10,000 lbs
- Overall Height: 110 1/4″
- Overall Width: 134 21/32″
- Column Width: 10.62″
- Base Width: 18.89″
- Column Thickness of Steel: 3/16″
- Carriage Thickness of Steel: 15/64″
- Arms Thickness of Steel: 15/64″
- Front Arm: 30.7″ to 48″
- Rear Arm: 30.7″ to 48″
- Min Pad Height: 3-7/8″
- Max Lift Height: 78-7/8″
- Drive-Thru Clearance: 99 19/32″
- Lift Time: 20–60 sec
- Shipping Weight: 1,350 lbs
GENERAL
- Condition: New
- Material: Steel
- Type: 2-Post Lift
- Features: Adjustable, Heavy Duty, Hydraulic
- Vehicle Type: Passenger Vehicle
- Warranty: Yes
