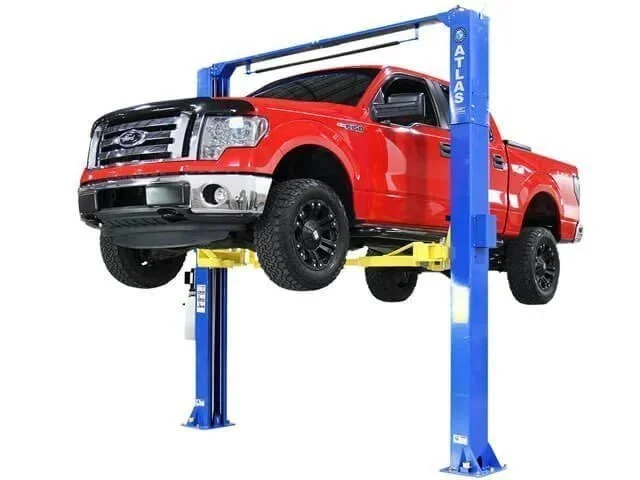

Atlas PRO-9D 9,000 lb Overhead 2-Post Lift

Atlas PRO-9D Two-Post Above-Ground Lift

Key Features

• 9,000 lb capacity
• Overhead, open-floor design
• Dual direct-drive cylinders (fewer moving parts)
• Asymmetric/symmetric arm configuration
• Automatic arm restraints
• Single-point lock release
• Rubber carriage guards
• Powder coat finish
• Includes 8-piece truck adapter set
• Mounting hardware included

Specifications

• Capacity: 9,000 lb
• Overall height: 144″ (12′)
• Overall floor width: 134½″ (11′ 2½″)
• Outside column to column: 124⅞″ (10′ 4⅞″)
• Inside column: 110″ (9′ 2″)
• Drive-thru clearance: 100″ (8′ 4″) symmetric / 90½″ (7′ 6½″) asymmetric
• Max lift height (no adapters): 68″
• Max lift height (with adapters): 74¼″
• Minimum arm height: 4½″
• Column size: 7¼″ × 11″
• Steel thickness: 5 mm
• Base plate size: 14¼″ × 18″
• Motor requirement: 220V single phase (30A breaker recommended)
• Oil requirement: 3–5 gallons AW32/AW46 (not included)
• Shipping weight: 1,450 lb
• Warranty: 5 yr structural / 2 yr hydraulic-power
• Concrete requirement: minimum 4″, 3000 PSI
