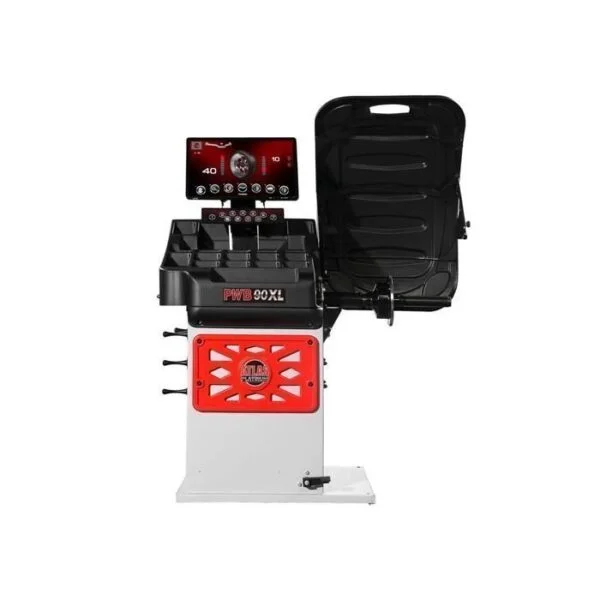

Atlas Platinum PWB90XL Wheel Balancer (3D Video + Laser Line)
Key Features
- High-resolution video monitor display
- Super Automatic 3D data entry (offset + diameter via single gauge)
- Touchless sonar rim width measurement (no manual measuring arm)
- Laser line guides exact weight placement
- LED wheel illumination
- Static and dynamic balancing modes
- ALU-S and multiple ALU programs
- OPTIMATCH software (match mounting optimization)
- FES split weight function (hide weights behind spokes)
- OWF opposite weight positioning (12 o’clock / 6 o’clock placement options)
- Self-calibrating and self-diagnosing system
- USB firmware update support
- No anchor-down installation required
- Includes cones, quick-release nut, pliers, and calipers
Specifications
- Max wheel diameter: 43″ (1100 mm)
- Rim diameter range: 10″ – 30″
- Rim width range: 1½″ – 20″
- Shaft size: 40 mm
- Max wheel weight: 165 lb (75 kg)
- Balancing speed: 130 RPM
- Power supply: 110V single phase
- Accuracy: 1 g
- Cycle time: 7 seconds
- Shipping weight: 290 lb
- Warranty: 1-year limited
