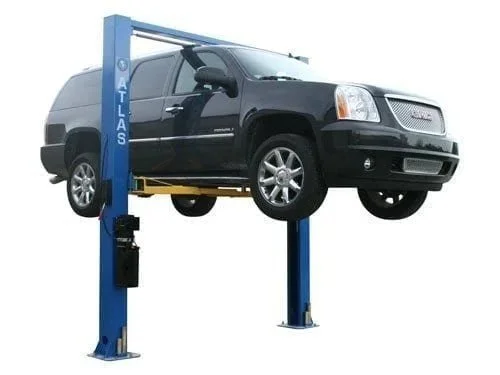

Atlas 9OHSC 9,000 lb Overhead 2-Post Lift

The Atlas® 9OHSC 9,000 lb 2-Post Above-Ground Lift is designed for smaller commercial repair facilities that need a reliable, space-efficient, and heavy-duty lifting solution. Built for durability and consistent performance, this overhead-style lift delivers professional-grade capability in a compact footprint.

With a 9,000 lb lifting capacity and an overhead open-floor design, the 9OHSC provides unobstructed floor space, making it ideal for shop environments where efficiency and maneuverability matter. Its single-piece column construction enhances structural rigidity, while the dual hydraulic chain-drive cylinders ensure smooth and balanced lifting performance.

The lift is equipped with 3-stage front arms and 2-stage rear arms, offering improved reach and flexibility for a wide range of vehicle types. Safety and usability are enhanced through automatic arm restraints, a single-point lock release system, and protective rubber carriage guards.

To support versatility, the Atlas 9OHSC includes a free 12-piece truck adapter set, allowing it to accommodate cars, SUVs, and light-duty trucks with ease.

Key Features

• Model: Atlas® ATTD-9OHSC-SS
• Lift Type: Overhead, open-floor 2-post lift
• Capacity: 9,000 lbs
• Column Design: Single-piece heavy-duty construction
• Arm Configuration: 3-stage front arms / 2-stage rear arms
• Hydraulic System: Dual chain-drive cylinders
• Safety System: Automatic arm restraints
• Lock System: Single-point lock release
• Protection: Rubber carriage guards
• Included Accessories: 12-piece truck adapter set
• Mounting Hardware: Included
• Electrical Requirement: 220V single-phase, 30-amp breaker recommended
• Hydraulic Oil: 3–5 gallons AW32/AW46 (not included)
• Shipping Weight: 1,430 lbs

Specifications

• Capacity: 9,000 lb
• Overall Height: 142 in (11′ 10″)
• Overall Floor Width: 133 1/2 in (11′ 1 1/2″)
• Outside Column Width: 125 1/2 in
• Inside Column Width: 109 1/2 in (9′ 1 1/2″)
• Max Lift Height (no adapters): 76 3/4 in
• Max Lift Height (with adapters): 87 3/4 in
• Minimum Arm Height: 4 in
• Drive-Thru Clearance: 100 1/2 in (8′ 4 1/2″)
• Column Size: 8″ x 9 3/8″
• Steel Thickness: 5 mm
• Base Dimensions: 16 3/4″ x 17 3/4″

Warranty

• Structural: 5 years
• Hydraulic: 2 years
