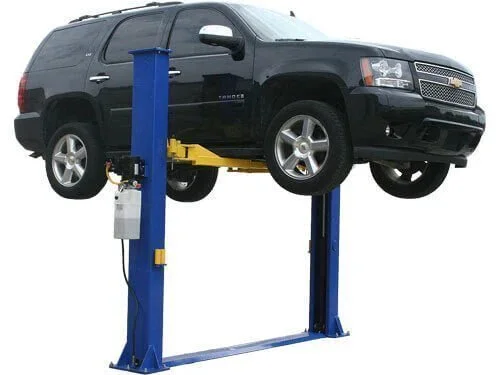

The Atlas® 9KBPX Baseplate 2-Post Lift is an economically designed, low-clearance automotive lift ideal for garages with limited ceiling height. With a total column height of 111 ½ inches (9′ 3 ½”), it can be installed in most professional or residential garages with ceilings as low as 9′ 6″, making it a practical solution for tight vertical spaces.
This model uses a chain-over-roller lifting system combined with dual hydraulic chain-drive cylinders for smooth, reliable operation. A spring-loaded Secondary Lock System (SLS) automatically engages if slack or chain failure occurs, adding an important layer of operational safety.
Designed for versatility and ease of use, the 9KBPX features symmetric arms, automatic arm restraints, and a dual-point lock release system for secure vehicle positioning. It includes a free 8-piece truck adapter set, making it suitable for cars, SUVs, and light-duty trucks. (Not recommended for diesel dually or larger heavy-duty trucks.)
This lift is well suited for homeowners and small commercial shops seeking dependable performance, safety, and value in a compact footprint.
Key Features
- Model: Atlas® 9KBPX
- Lift Type: Baseplate, open-top 2-post lift
- Capacity: 9,000 lbs
- Design: Low ceiling compatibility (111.5″ overall height)
- Arm Type: Symmetric arms
- Hydraulic System: Dual chain-drive cylinders
- Safety System: Spring-loaded Secondary Lock System (SLS)
- Arm Safety: Automatic arm restraints
- Lock System: Dual-point lock release
- Included Accessories: 8-piece truck adapter set
- Mounting Hardware: Included
- Electrical Requirement: 220V single-phase, 30-amp breaker recommended
- Hydraulic Oil: 3–5 gallons AW32/AW46 (not included)
Specifications
- Capacity: 9,000 lb
- Overall Height: 111 1/2 in (9′ 3 1/2″)
- Overall Floor Width: 134 1/2 in (11′ 2 1/2″)
- Outside Column Width: 124 7/8 in
- Inside Column Width: 110 in (9′ 2″)
- Maximum Lift Height (no adapters): 74 1/2 in
- Maximum Lift Height (with adapters): 81 in
- Minimum Arm Height: 4 in
- Drive-Thru Clearance: 101 in (8′ 5″)
- Column Size: 7 1/4″ x 11″
- Steel Thickness: 5 mm
- Base Dimensions: 14 1/4″ x 18 1/4″
Warranty
- Structural: 2 years
- Hydraulic: 1 year
