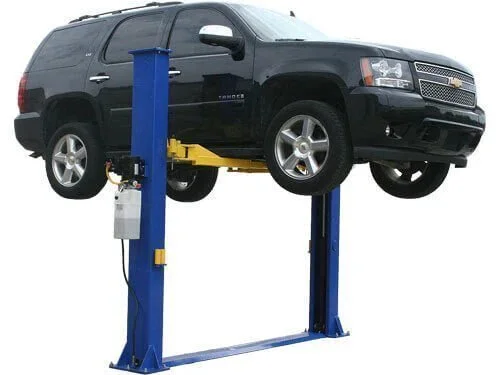

The Atlas® 9KBPX Baseplate 2-Post Lift is an economically designed, low-clearance automotive lift engineered for garages with limited ceiling height. With a total column height of 111 ½ inches (9′ 3 ½”), it can be installed in most professional or residential garages with ceilings as low as approximately 9′ 6″, making it a practical solution where space is restricted.
Built for reliability and ease of use, the 9KBPX features a chain-over-roller lifting system with dual hydraulic chain-drive cylinders for smooth, consistent operation. A spring-loaded Secondary Lock System (SLS) automatically engages in the event of chain slack or failure, adding an important layer of safety during operation.
The lift is equipped with symmetric arms, automatic arm restraints, and a dual-point lock release system, providing stable and secure vehicle positioning. It includes a free 8-piece truck adapter set, making it suitable for a wide range of passenger vehicles, SUVs, and light-duty trucks. (Not recommended for diesel dually or heavy-duty large trucks.)
Designed with both home users and small commercial shops in mind, the Atlas 9KBPX offers a strong balance of performance, safety, and value.
Key Features
- Model: Atlas® 9KBPX
- Lift Type: Baseplate, open-top 2-post lift
- Capacity: 9,000 lbs
- Design: Low ceiling compatibility (111.5″ column height)
- Arm Type: Symmetric arms
- Hydraulic System: Dual chain-drive cylinders
- Safety System: Spring-loaded Secondary Lock System (SLS)
- Arm Safety: Automatic arm restraints
- Lock System: Dual-point lock release
- Included Accessories: 8-piece truck adapter set
- Mounting Hardware: Included
- Electrical Requirement: 220V single-phase, 30-amp breaker recommended
- Hydraulic Oil: 3–5 gallons AW32/AW46 (not included)
Specifications
- Capacity: 9,000 lb
- Overall Height: 111 1/2 in (9′ 3 1/2″)
- Overall Floor Width: 134 1/2 in (11′ 2 1/2″)
- Outside Column Width: 124 7/8 in
- Inside Column Width: 110 in (9′ 2″)
- Max Lift Height (no adapters): 74 1/2 in
- Max Lift Height (with adapters): 81 in
- Minimum Arm Height: 4 in
- Drive-Thru Clearance: 101 in (8′ 5″)
- Column Size: 7 1/4″ x 11″
- Steel Thickness: 5 mm
- Base Dimensions: 14 1/4″ x 18 1/4″
Warranty
- Structural: 2 years
- Hydraulic: 1 year (parts only)
