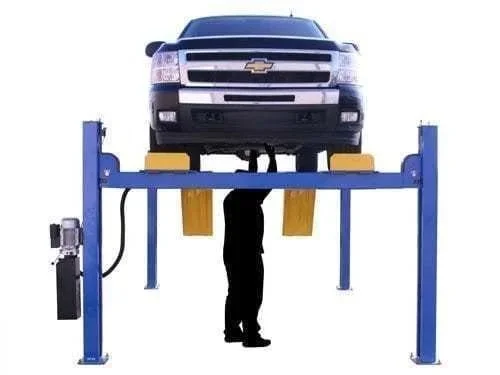

The Atlas® ATTD-414 14,000 lb Commercial 4-Post Lift is a heavy-duty, professional-grade automotive lift designed for maximum strength, durability, and long-term reliability in demanding service environments. Built to commercial specifications, the Atlas 414 delivers consistent performance and dependable lifting capacity for a wide range of vehicles.
This model utilizes a high-strength cable lifting system paired with an underslung oversized hydraulic cylinder, powered by a 220V single-phase electric unit for smooth and controlled operation. Compared to traditional chain-driven systems, this design improves leveling accuracy, reduces wear issues, and minimizes exposure of hydraulic components that can lead to damage.
A key feature of the Atlas 414 is its integrated runway track system, which allows compatibility with rolling bridge jacks such as the Atlas RJ8000BK (sold separately), significantly expanding its service capabilities for tires, brakes, and suspension work.
The lift is built for heavy-duty use with diamond-plated runways, a double-lock safety system, and a durable powder-coated finish for corrosion resistance. Steel approach ramps are included, with optional accessories available to expand functionality.
Key Features
- Model: Atlas® ATTD-414
- Lift Type: Commercial 4-post automotive lift
- Capacity: 14,000 lbs
- Construction: Heavy-duty commercial-grade steel
- Runways: Diamond-plated steel
- Safety System: Double-lock safety system with lock ladder design
- Lock Release: Air-operated single-point release (requires external air supply)
- Hydraulic System: Underslung oversized cylinder with high-strength cable system
- Finish: Durable powder coat coating
- Bridge Jack Compatibility: Designed for rolling jack use (sold separately)
- Included: Steel approach ramps and mounting hardware
- Optional Accessories: Drive-off ramps and runway extensions
- Electrical Requirement: 220V single-phase, 30-amp breaker recommended
- Air Requirement: 85–115 PSI external air supply required
- Oil Requirement: 3–5 gallons AW32/AW46 (not included)
Specifications
- Capacity: 14,000 lb
- Max Lifting Height: 80 in (6′ 8″)
- Overall Width (No Motor): 130 7/8 in
- Overall Width (With Motor): 138 7/8 in
- Overall Length (With Ramps): 255 in (21′ 3″)
- Runway Length: 208 5/8 in
- Runway Width: 20 in
- Distance Between Columns: 197 1/4 in
- Clearance Between Columns: 116 in (9′ 8″)
- Clearance Under Runways: 71 1/4 in (5′ 11 1/4″)
- Drive-Thru Clearance: 102 1/8 in
- Maximum Wheelbase: 197 in
- Column Height: 91 1/8 in
- Width Between Runways: 46 7/8 in (44 3/8 in with rail)
- Outside Runway Width: 86 7/8 in
Warranty
- Structural: 5 years
- Hydraulic: 2 years
