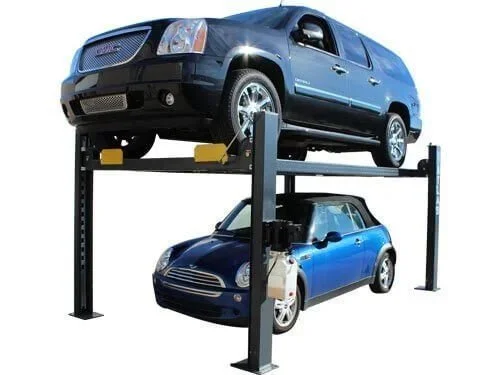

The Atlas® 408SL Super Deluxe Portable 4-Post Vehicle Storage Lift is designed for automotive enthusiasts who demand premium quality, superior engineering, and a refined appearance in a storage lift. Built with commercial-grade construction and enhanced design features, the 408SL delivers strength, stability, and long-term durability while maintaining true portability.
This model combines the best features of the Atlas Garage Pro Series with upgrades found in commercial-grade lifts. Reinforced columns with dual structural bends increase strength and improve slide block travel, while hidden cable routing within cross tubes enhances safety and appearance. A heavier overall construction—over 100 lbs more than comparable hobbyist models—ensures improved rigidity and performance under load.
Designed for convenience, the 408SL includes a caster kit with polyurethane wheels, allowing the lift to be easily moved when needed. A single-point lock release system, double safety lock design, and diamond-plated runways provide secure and stable operation, while the integrated jack tray and drip trays add versatility for maintenance and storage applications.
Key Features
- Model: Atlas® 408SL
- Lift Type: Portable 4-post storage lift
- Capacity: 8,000 lbs
- Design: Free-standing, portable with caster kit included
- Runways: Diamond-plated steel construction
- Safety System: Double-lock safety system with single-point release
- Cable System: Hidden cables within columns and cross tubes
- Column Design: Reinforced dual-bend columns for added strength
- Finish: High-quality steel gray powder coat
- Accessories Included:
- Steel approach ramps
- Steel jack tray
- Four plastic drip trays
- Wheel stops
- Caster kit with polyurethane wheels
- Power Unit: Can be positioned at any corner
- Electrical Requirement: 110V, 30-amp breaker required
- Anchor Bolts: Optional (sold separately)
- Shipping Weight: 1,965 lbs
Specifications
- Capacity: 8,000 lb
- Max Lifting Height (to runway top): 73 1/4 in (6′ 1 1/4″)
- Clearance Under Runways: 68 1/2 in (5′ 8 1/2″)
- Column Height: 83 in (7′ 11″)
- Overall Width (No Motor): 109 5/8 in
- Overall Width (With Motor): 117 1/2 in
- Overall Length (With Ramp): 205 3/8 in
- Runway Length: 166 3/4 in
- Runway Width: 21 1/2 in (with rails) / 18 3/4 in (driving surface)
- Width Between Runways: 37 1/4 in
- Distance Between Columns: 95 1/2 in
- Max Wheelbase: 154 in
- Drive-Thru Clearance: 82 in
Warranty
- Structural: 2 years
- Hydraulic: 2 years (parts only)
