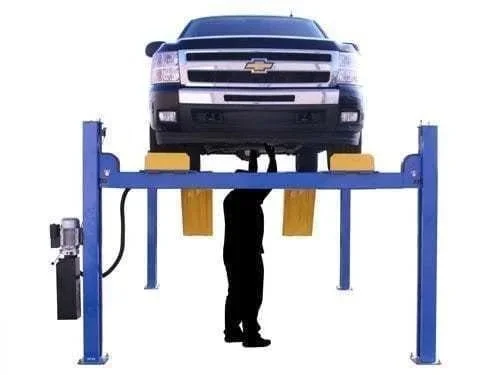

The Atlas® ATTD-414 14,000 lb 4-Post Lift is a heavy-duty, commercial-grade automotive lift designed for professional workshops, service centers, and high-volume vehicle storage and service applications. Built for strength, stability, and long-term durability, this lift delivers reliable performance for demanding environments.
Engineered with a high-strength cable lifting system and an underslung oversized hydraulic cylinder, the Atlas 414 is powered by a 220V single-phase electric unit for smooth and consistent lifting and lowering. Unlike traditional chain-style systems, this advanced design helps ensure better leveling, reduced maintenance issues, and improved long-term reliability.
A key advantage of the Atlas 414 is its built-in runway track system, which allows compatibility with rolling bridge jacks (such as the Atlas RJ8000BK, sold separately), making it highly versatile for tire, brake, and suspension service work.
Finished with a durable powder coat protective coating, the lift also includes diamond-plated runways, steel approach ramps, and a double-lock safety system for added operator protection and stability during use.
Key Features
- Model: Atlas® ATTD-414
- Lift Type: 4-post commercial automotive lift
- Capacity: 14,000 lbs
- Operation: 220V / 1-phase electric power unit
- Hydraulic System: Underslung oversized cylinder with high-strength cable system
- Safety System: Double-lock safety system with lock ladder design
- Lock Release: Air-operated single-point release (requires external air supply)
- Runways: Diamond-plated steel construction
- Finish: Durable powder coat coating
- Included: Steel approach ramps and mounting hardware
- Accessories: Runway extensions and drive-off ramps available separately
- Bridge Jack Compatibility: Designed for rolling jack use (sold separately)
- Electrical Requirement: 30-amp breaker recommended
- Air Requirement: 85–115 PSI external air supply required
Specifications
- Lifting Capacity: 14,000 lb
- Max Lifting Height: 80 in (6′ 8″)
- Overall Width (No Motor): 130 7/8 in
- Overall Width (With Motor): 138 7/8 in
- Overall Length (With Ramps): 255 in (21′ 3″)
- Runway Length: 208 5/8 in
- Runway Width: 20 in
- Distance Between Columns: 197 1/4 in
- Clearance Between Columns: 116 in
- Clearance Under Runways: 71 1/4 in
- Drive-Thru Clearance: 102 1/8 in
- Maximum Wheelbase: 197 in
- Column Height: 91 1/8 in
- Width Between Runways: 46 7/8 in (44 3/8 in with rail)
- Outside Runway Width: 86 7/8 in
- Hydraulic Oil Requirement: 3–5 gallons AW32/AW46 (not included)
Warranty
- Structural: 5 years
- Hydraulic: 2 years (parts only)
