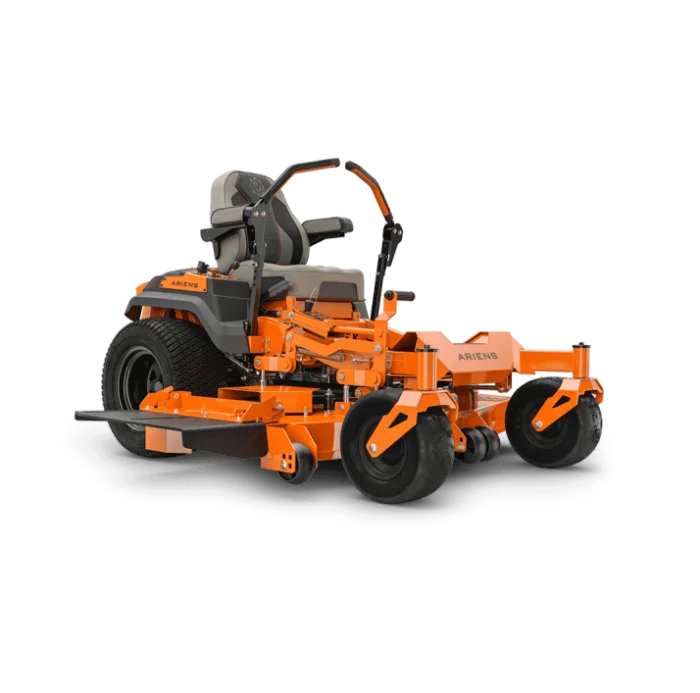

The Ariens APEX 60 (Model 991163) is a semi-professional zero-turn mower designed for high-efficiency mowing performance on large residential and light commercial properties. It combines a wide 60-inch ENVY™ Elite fabricated cutting deck with a Kawasaki FR730V 726cc V-twin engine to deliver strong power, durability, and consistent cut quality.
The 10-gauge fabricated steel deck is 5.5 inches deep, engineered to improve airflow and discharge performance for a clean, even cut even in thick or fast-growing grass. With 15 cutting height positions ranging from 1.5 to 5 inches, the mower offers precise adjustment for a variety of lawn conditions.
Power is delivered through Hydro-Gear ZT-3100 transaxles, providing smooth handling and reliable control at speeds up to 8 mph forward and 4 mph reverse. The electric Warner deck engagement system ensures dependable blade operation, while the foot-operated deck lift system with assist spring allows quick and easy height changes.
Operator comfort is supported by a high-back padded seat with armrests, a fully tubular steel frame for durability, and self-adjusting belt technology that reduces maintenance requirements. Optional accessories include lighting and seat isolation upgrades.
Features
- 60-inch ENVY™ Elite fabricated steel cutting deck (10-gauge, 5.5-inch depth)
- Kawasaki FR730V 726cc V-twin engine (24 HP)
- Hydro-Gear ZT-3100 transaxles for smooth drive performance
- Electric Warner deck engagement system
- Foot-operated deck lift with assist spring
- Fully tubular steel frame for strength and durability
- High-back padded seat with armrests for operator comfort
- Self-adjusting belt technology for reduced maintenance
- 15-position cutting height adjustment (1.5″–5″)
- Optional lighting and seat isolation accessories
Specifications
- Model: Ariens APEX 60 (991163)
- Engine: Kawasaki FR730V
- Displacement: 726 cc
- Horsepower: 24 HP
- Fuel Capacity: 5.1 gallons (19.3 L)
- Cutting Width: 60 in (152.4 cm)
- Cutting Height Range: 1.5 – 5 in
- Cutting Positions: 15
- Deck Construction: 10-gauge fabricated steel
- Deck Depth: 5.5 in
- Spindle Material: Forged aluminum
- Deck Engagement: Electric Warner system
- Deck Lift System: Foot-operated with assist spring
- Drive System: Hydro-Gear ZT-3100 transaxles
- Ground Speed: 8 mph forward / 4 mph reverse
- Weight (assembled): 845 lb (383.2 kg)
- Length: 79 in (200.7 cm)
- Width (chute up): 63.7 in (161.8 cm)
- Width (chute down): 74.8 in (190 cm)
- Warranty: 4 years or 500 hours
