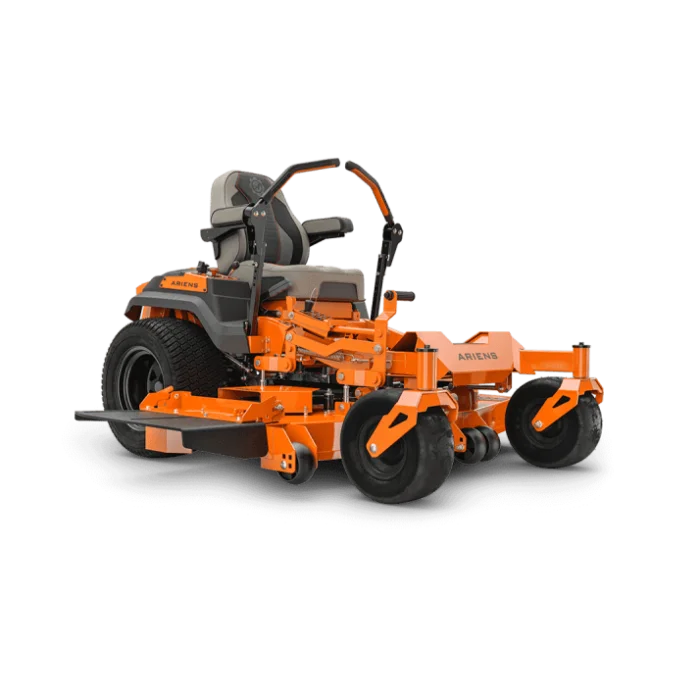

Ariens APEX 60 60-Inch Zero Turn Mower with 24HP Kawasaki Engine (Model 991163)

The Ariens APEX 60 (Model 991163) is a semi-professional zero-turn mower built for high-efficiency residential and light commercial lawn care. It combines a wide 60-inch fabricated cutting deck with a powerful Kawasaki FR730V 726cc V-twin engine to deliver strong performance, durability, and consistent cut quality across large mowing areas.

The 60-inch ENVY™ Elite Cutting System features a 10-gauge fabricated steel deck with a 5.5-inch depth, designed to enhance airflow and cutting performance. This allows the mower to maintain a clean, even cut while efficiently handling thick or fast-growing grass.

Power is delivered through Hydro-Gear ZT-3100 transaxles, providing smooth handling and responsive control at speeds up to 8 mph forward and 4 mph in reverse. The electric Warner deck engagement system ensures reliable blade activation, while the foot-operated deck lift system allows quick and convenient cutting height adjustments.

Operator comfort is supported by a high-back padded seat with armrests, self-adjusting belt technology for reduced maintenance, and a fully tubular steel frame that enhances durability and structural rigidity.

Features

• 60-inch ENVY™ Elite fabricated steel cutting deck (10-gauge, 5.5-inch depth)
• Kawasaki FR730V 726cc V-twin engine (24 HP)
• Hydro-Gear ZT-3100 transaxles for smooth drive performance
• Electric Warner deck engagement system
• Foot-operated deck lift with assist spring
• Fully tubular steel frame for strength and durability
• High-back padded seat with armrests for operator comfort
• Self-adjusting belt technology for reduced maintenance
• 15-position cutting height adjustment (1.5″ to 5″)

Specifications

• Model: Ariens APEX 60 (991163)
• Engine: Kawasaki FR730V
• Displacement: 726 cc
• Horsepower: 24 HP
• Fuel Capacity: 5.1 gallons (19.3 L)
• Cutting Width: 60 in (152.4 cm)
• Cutting Height Range: 1.5 – 5 in (15 positions)
• Deck Construction: 10-gauge fabricated steel
• Deck Depth: 5.5 in
• Spindle Material: Forged aluminum
• Deck Engagement: Electric Warner system
• Deck Lift System: Foot-operated with assist spring
• Drive System: Hydro-Gear ZT-3100 transaxles
• Ground Speed: 8 mph forward / 4 mph reverse
• Weight: 845 lb (383.2 kg)
• Length: 79 in
• Width (chute up): 63.7 in
• Width (chute down): 74.8 in
• Warranty: 4 years or 500 hours
• Lighting: Accessory option
• Seat Isolation: Accessory option
