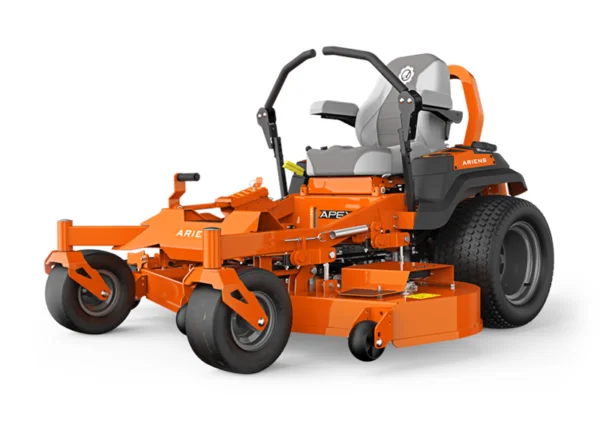

The Ariens APEX 60 is a high-performance zero-turn mower designed for homeowners and light commercial users who need maximum cutting efficiency and durability. Equipped with a 60-inch fabricated steel deck and powered by a Kawasaki FR730 726cc V-twin engine, it delivers strong cutting power, wide coverage, and consistent performance across large properties.
Its 10-gauge fabricated 60-inch deck is 5.5 inches deep, improving airflow and cut quality for a clean, professional finish. Built on a fully tubular steel frame, the mower provides strong structural rigidity and long-term durability. Hydro-Gear ZT-3100 transaxles allow smooth handling and speeds up to 8 mph forward, making it efficient for large mowing areas.
Operator comfort is enhanced with a high-back padded seat with armrests, foot-operated deck lift system, and self-adjusting belt technology. The electric Ogura deck engagement system ensures reliable and easy blade control, while the 15-position cutting height adjustment allows precise mowing control.
Features
- 60-inch fabricated 10-gauge steel cutting deck (5.5-inch depth)
- Kawasaki FR730 726cc V-twin engine for powerful performance
- Hydro-Gear ZT-3100 transaxles for smooth operation
- Fully tubular steel frame for strength and durability
- Electric Ogura deck engagement system
- Foot-operated deck lift for easy height adjustment
- High-back padded seat with armrests for operator comfort
- Self-adjusting belt technology for reduced maintenance
- 15-position cutting height adjustment for precision mowing
Specifications
- Model: Ariens APEX 60 (991163)
- Engine: Kawasaki FR730 V-twin
- Displacement: 726cc
- Deck Size: 60 inches
- Deck Material: 10-gauge fabricated steel
- Deck Depth: 5.5 inches
- Blade Tip Speed: 18,000 FPM
- Spindles: 3 aluminum spindles with steel shafts
- Drive System: Hydro-Gear ZT-3100 transaxles
- Fuel Capacity: 5.1 gallons (19.3L)
- Ground Speed: Up to 8 mph forward / 4 mph reverse
- Cutting Height Range: 1.5 – 5 inches
- Deck Drive: Belt
- Deck Engagement: Electric Ogura system
- Deck Lift: Foot-operated
- Front Wheels: 13 x 6.5 in – 6 in
- Rear Wheels: 22 x 12 in – 12 in
- Weight: 870 lbs
- Dimensions (L × W × H): 79 in × 75 in × 49 in
- Warranty: 4-year / 500-hour machine warranty; 5-year limited deck & frame warranty
Available Accessories
- 2-bucket powered bagger system (requires mount kit and ROPS bagger mount)
- Lower ROPS bagger mount kit
- 60″ bagger mount kit
- 60″ grass mulching kit
- 60″ operator-controlled chute baffle
- 60″ discharge cover kit
