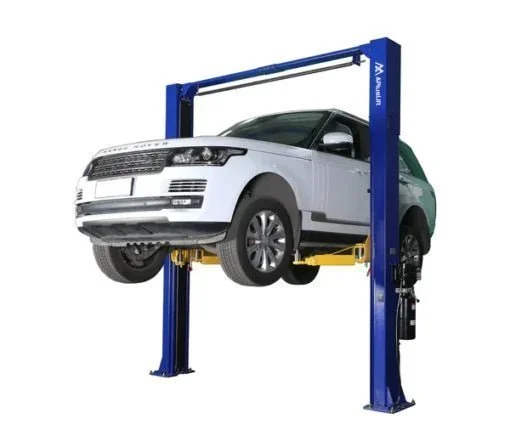

APlusLift 10000 LB 2-Post Overhead Heavy Duty Car Lift

The APlusLift HW-10KOH is a heavy-duty overhead car lift designed for professional automotive shops requiring reliable lifting performance and strong structural stability. With a 10,000 lb (10K) lifting capacity and reinforced double “S” column design, this lift is engineered for strength, durability, and efficient vehicle servicing.

Powered by dual hydraulic cylinders with a chain-drive system, the HW-10KOH delivers smooth and consistent lifting with a full rise time of approximately 50 seconds. Its symmetrical and asymmetrical arm configuration allows flexible vehicle positioning, making it suitable for a wide range of cars and light trucks. The system also includes truck adapters and adjustable screw pads to accommodate different lifting points safely.

Built for demanding environments, this lift requires a 220V single-phase 3HP motor and is designed to be anchored into reinforced concrete for maximum safety and stability. Its robust steel construction across columns, arms, and carriage components ensures long-term durability under heavy workloads.

Features

• 10,000 lb lifting capacity for professional automotive use
• Heavy-duty double “S” column construction for enhanced strength
• Dual hydraulic cylinders with chain-drive system for smooth lifting
• Symmetrical and asymmetrical arm configuration for flexible positioning
• Fast lift time of approximately 50 seconds to full height
• Includes truck adapters and adjustable screw pads for versatility
• Front and rear 3-stage and 2-stage arm reach for varied vehicle sizes
• Built for use with 220V single-phase 3HP motor (30A breaker required)
• Includes anchor bolts, tool trays, and toe guards
• Designed for installation on reinforced concrete slab

Specifications

• Capacity: 10,000 lbs.
• Overall Height: 143 3/16 in.
• Overall Width: 134 5/16 in.
• Lifting Height (without truck adapters): 75 in.
• Lifting Height (with truck adapters): 81 in.
• Minimum Arm Height: 4.5 in.
• Drive Through Width: 100 in.
• Column-to-Column Width: 109 in.
• Column Cross Section: 11 in. L × 7 in. W
• Motor: 220V single phase, 3HP (30A breaker required)
• Hydraulic Oil Capacity: 3–5 gallons (AW32/AW46)
• Time to Full Rise: ~50 seconds
• Arm Reach (Front/Rear 3-stage): 22 7/8 in. to 42 5/8 in.
• Arm Reach (Rear 2-stage): 33 5/8 in. to 52 7/8 in.
• Concrete Requirement: 6 in. at 3500 PSI (4 in. for vehicles ≤ 9000 lb)
• Steel Thickness: Column 13/64 in.; Carriage 15/64 in.; Arm 15/64 in.; Carriage Yoke 5/16 in.; Base Plate 5/8 in.
