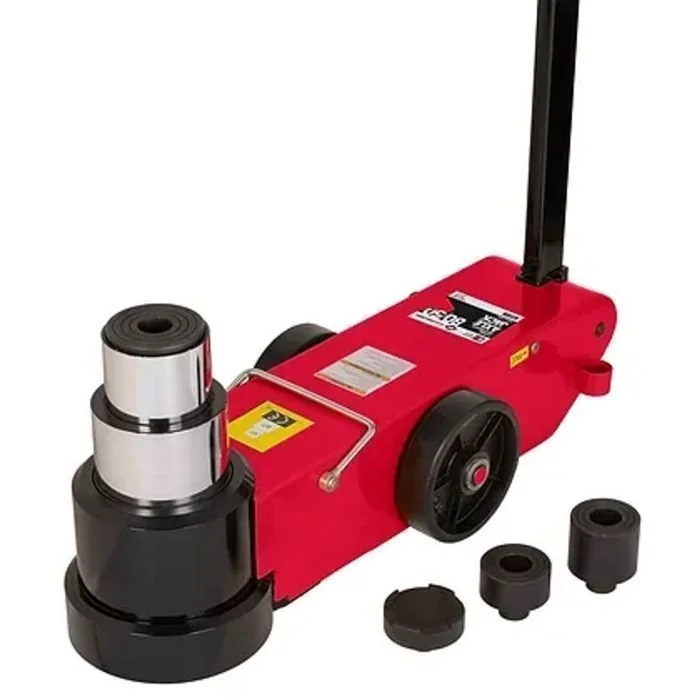

AFF 80-50-Ton 2-Stage Air Hydraulic Axle Jack

The American Forge & Foundry 549SD 80/50-Ton 2-Stage Air Hydraulic Axle Jack is built to handle the most demanding heavy-duty lifting applications, including trucking, agricultural equipment, construction machinery, military vehicles, and aircraft service. Engineered for exceptional strength and reliability, this super-duty axle jack features advanced industrial piston head seal technology for superior load holding under both low- and high-pressure conditions. Its rugged single-piece base construction and double-polished chrome pistons provide outstanding durability, reduced wear, and consistent hydraulic performance in the toughest environments.

The extra-long 54-inch handle locks into three positions for easy positioning beneath hard-to-reach lifting points. An integral descent metering valve delivers safe, controlled lowering of heavy loads, while the air-assisted lowering system speeds ram retraction for increased productivity. A built-in overload safety valve helps protect the jack from excessive loads. The included saddle adapter and 1.75-inch and 3-inch extensions provide added versatility, and the jack is tested to perform reliably in extreme temperatures and demanding operating conditions.

Features

• Super heavy-duty 2-stage air hydraulic axle jack for trucking, agriculture, construction, military, fleet, and aircraft applications
• 80-ton first-stage and 50-ton second-stage lifting capacity
• Industrial piston head seal technology provides superior sealing and load-holding performance
• Extra-long 54-inch handle locks in three positions for improved accessibility
• Integral descent metering valve ensures smooth and controlled lowering
• Single-piece base construction provides exceptional strength and load stability
• Double-polished chrome pistons reduce oil bypass and ram scoring for extended service life
• Air-assisted lowering speeds ram retraction for increased efficiency
• Built-in overload safety valve helps prevent damage from excessive loads
• Includes saddle adapter, 1.75-inch extension, and 3-inch extension
• Tested from -13°F (-25°C) to 113°F (45°C) for reliable operation in demanding environments

Specifications

• Model: 549SD
• Capacity: 80 Tons (1st Stage) / 50 Tons (2nd Stage)
• 80-Ton (1st Stage) Low Height: 9.06 in. (230 mm)
• 80-Ton (1st Stage) Maximum Height: 13.39 in. (340 mm)
• 80-Ton (1st Stage) Ram Lift: 4.33 in. (110 mm)
• 50-Ton (2nd Stage) Low Height: 9.06 in. (230 mm)
• 50-Ton (2nd Stage) Maximum Height: 17.32 in. (440 mm)
• 50-Ton (2nd Stage) Ram Lift: 8.27 in. (210 mm)
• Working Air Pressure: 116–174 PSI (0.8–1.2 MPa)
• Net Weight: 233 lbs. (106 kg)
• Shipping Weight: 240 lbs. (109 kg)
• Warranty: 3-Year Limited Warranty
