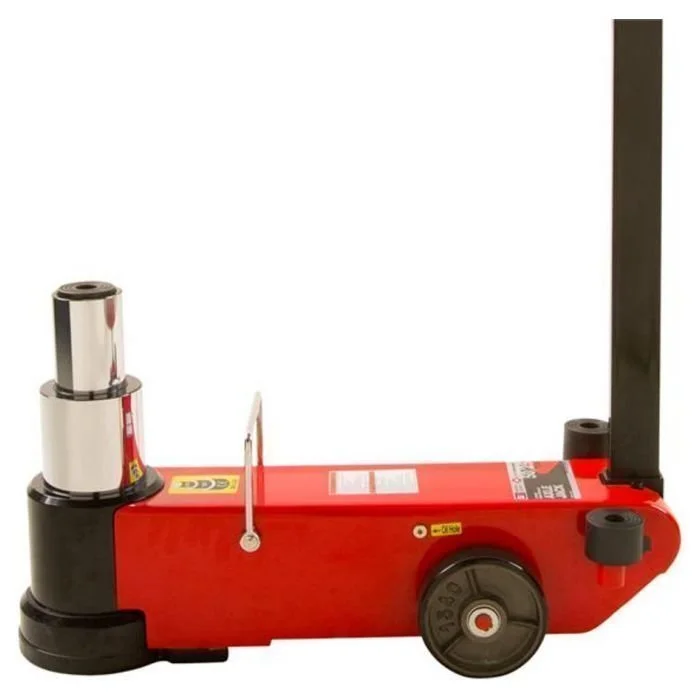

AFF 50-25-Ton 2-Stage Air Hydraulic Axle Jack

The American Forge & Foundry 50/25-Ton 2-Stage Air Hydraulic Axle Jack is engineered for the demanding requirements of heavy-duty trucking, agricultural equipment, and commercial fleet maintenance. Designed for maximum strength and durability, this super heavy-duty axle jack utilizes an advanced industrial piston head seal for exceptional load holding under both low- and high-pressure conditions. Its rugged single-piece base construction provides outstanding stability, while double-polished chrome pistons minimize wear and deliver smooth, reliable hydraulic performance.

The extra-long 54-inch handle locks into three positions for convenient access in hard-to-reach lifting points. An integral descent metering valve ensures safe, controlled lowering of heavy loads, while air-assisted lowering speeds ram retraction for increased productivity. A built-in overload safety valve helps protect the jack from excessive loads. The jack includes a saddle adapter along with 1.75-inch and 3-inch extensions for expanded lifting versatility and has been tested in extreme temperatures to ensure dependable operation in demanding environments.

Features

• Super heavy-duty 2-stage air hydraulic axle jack for trucking, agricultural, and fleet service
• 50-ton first-stage and 25-ton second-stage lifting capacity
• Industrial piston head seal design provides superior sealing and load holding
• Extra-long 54-inch handle locks in three positions for improved accessibility
• Integral descent metering valve ensures smooth and controlled load lowering
• Single-piece base construction delivers superior strength and load stability
• Double-polished chrome pistons reduce oil bypass and ram scoring for longer service life
• Air-assisted lowering accelerates ram retraction
• Built-in overload safety valve helps prevent damage from excessive loads
• Includes saddle adapter, 1.75-inch extension, and 3-inch extension
• Tested from -13°F (-25°C) to 113°F (45°C) for dependable performance in harsh environments

Specifications

• Capacity: 50 Tons (1st Stage) / 25 Tons (2nd Stage)
• 50-Ton (1st Stage) Low Height: 8.46 in. (215 mm)
• 50-Ton (1st Stage) Maximum Height: 13.07 in. (332 mm)
• 50-Ton (1st Stage) Ram Lift: 4.61 in. (117 mm)
• 25-Ton (2nd Stage) Low Height: 8.46 in. (215 mm)
• 25-Ton (2nd Stage) Maximum Height: 17.56 in. (446 mm)
• 25-Ton (2nd Stage) Ram Lift: 9.09 in. (231 mm)
• Working Air Pressure: 116–174 PSI (0.8–1.2 MPa)
• Net Weight: 161 lbs. (73 kg)
• Shipping Weight: 165 lbs. (75 kg)
• Warranty: 1-Year Limited Warranty
