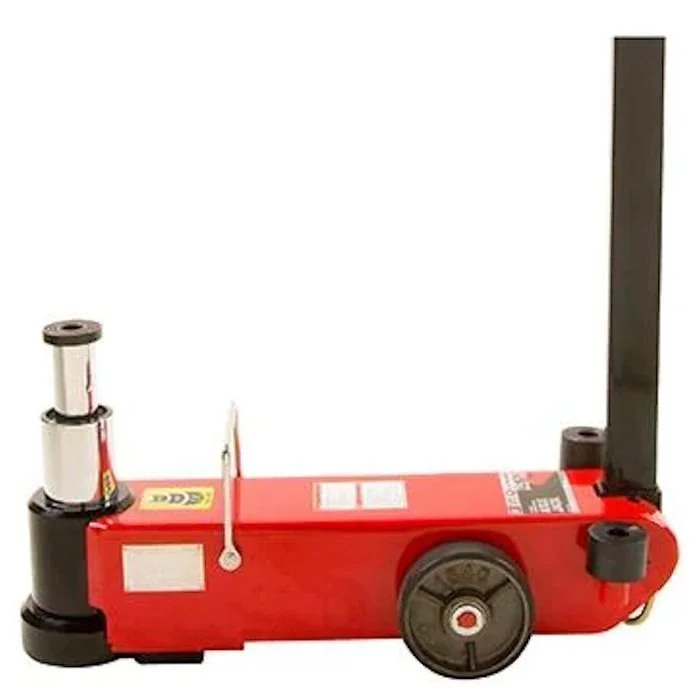

AFF 25-10-Ton 2-Stage Air Hydraulic Axle Jack

American Forge & Foundry’s 25/10-Ton 2-Stage Air Hydraulic Axle Jack is a super heavy-duty axle jack engineered for the demanding needs of heavy-duty trucking, agriculture, and fleet maintenance. Built with industrial-grade components, it features an advanced piston head seal design for superior load holding, a durable single-piece base for enhanced stability, and double-polished chrome pistons for reduced wear and extended service life. The extra-long 54-inch handle locks into three positions for easy access in hard-to-reach areas, while the integral descent metering valve ensures safe, controlled lowering. Air-assisted lowering speeds ram retraction, and a built-in overload safety valve helps protect the jack from excessive loads. The jack includes a saddle adapter along with 1.75-inch and 3-inch extensions for added versatility.

Features

• Super heavy-duty 25/10-ton, 2-stage axle jack designed for heavy-duty trucking, agricultural, and fleet applications
• Industrial technology piston head seal provides superior sealing under both low and high pressure
• Extra-long 54-inch handle locks in three positions for improved maneuverability
• Integral descent metering valve ensures controlled and safe load lowering
• Single-piece base construction delivers exceptional strength and stability
• Double-polished chrome pistons reduce oil bypass and ram scoring
• Air-assisted lowering for faster ram retraction
• Built-in overload safety valve helps prevent damage from excessive loads
• Includes saddle adapter, 1.75-inch extension, and 3-inch extension
• Tested from -13°F (-25°C) to 113°F (45°C) and center-loaded to ensure reliable performance in demanding conditions

Specifications

• Capacity: 25 Tons (1st Stage) / 10 Tons (2nd Stage)
• 25-Ton (1st Stage) Low Height: 7.28 in. (185 mm)
• 25-Ton (1st Stage) High Height: 11.10 in. (282 mm)
• 25-Ton (1st Stage) Ram Lift: 3.82 in. (97 mm)
• 10-Ton (2nd Stage) Low Height: 7.28 in. (185 mm)
• 10-Ton (2nd Stage) High Height: 14.84 in. (377 mm)
• 10-Ton (2nd Stage) Ram Lift: 7.56 in. (192 mm)
• Working Air Pressure: 116–174 PSI (0.8–1.2 MPa)
• Net Weight: 117 lbs. (53 kg)
• Shipping Weight: 128 lbs. (58 kg)
• Warranty: 3-Year Limited Warranty
