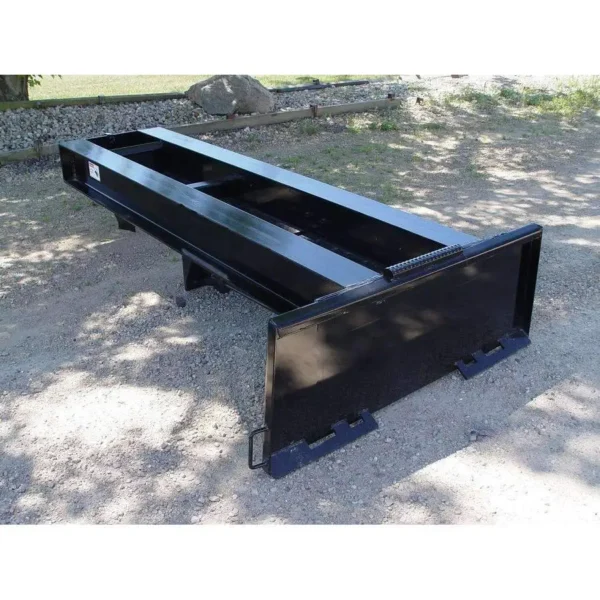

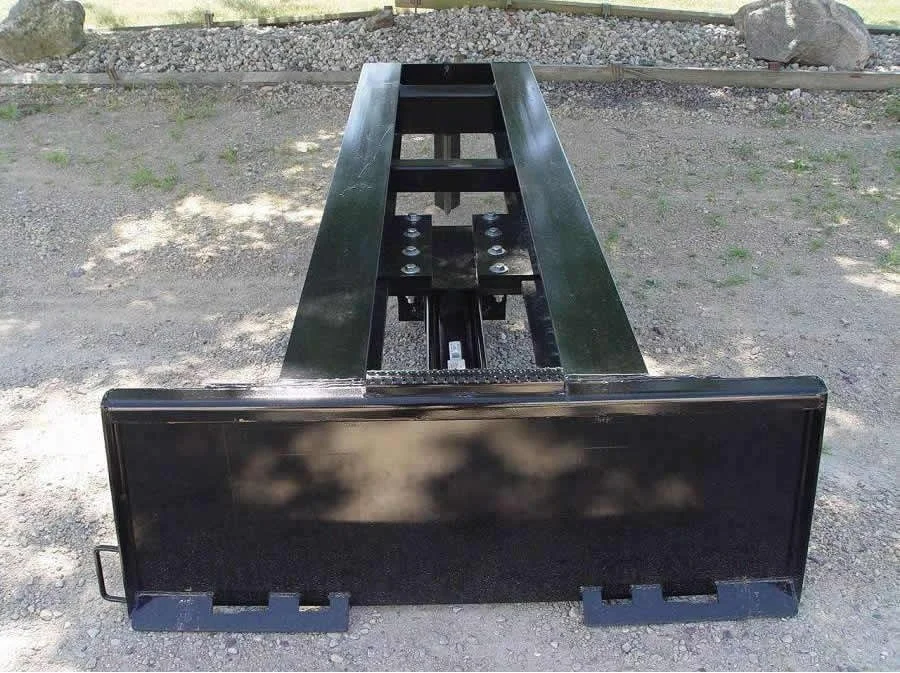

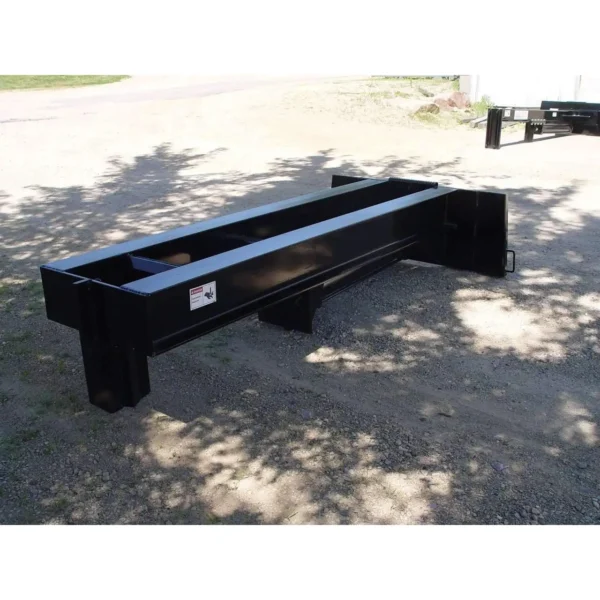

The Twin Beam Skid Steer Log Splitter is a hydraulic attachment designed to convert a skid steer loader into a firewood processing machine. It uses a 24-ton hydraulic system and is compatible with standard skid steer quick-attach mounting systems.
The unit features a twin 8-inch beam construction for added rigidity and durability. A 4 in. × 24 in. hydraulic cylinder powers the splitting mechanism, allowing it to handle large logs efficiently. A viewing window between the beams provides improved visibility for precise log placement.
The splitter can also grip logs for positioning over trailers, wagons, or truck beds, reducing manual handling of split wood.
Features
- 24-ton hydraulic splitting force (48,000 lbs)
- Twin 8-inch heavy-duty beam construction
- 4 in. × 24 in. hydraulic cylinder (welded, 2.5 in. rod)
- Skid steer universal quick-attach mounting plate
- Log gripping capability for positioning and transport loading
- Viewing window for improved operator visibility
- Includes hydraulic hoses and flat-face quick couplers
- Optional 4-way wedge attachment (bolt-on design)
- Powder-coated black finish
- Made in USA
Specifications
General
- Application: Skid steer log splitter attachment
- Weight: Approx. 980 lbs (shipping weight)
Hydraulic System
- Splitting Force: 24 tons (48,000 lbs)
- Cylinder: 4 in. × 24 in. welded cylinder
Structure
- Beam Type: Twin 8-inch heavy-duty beams
- Frame Construction: Steel
Mounting
- Type: Universal skid steer quick-attach system (dual lock handle type)
Dimensions
- Length: 78 in (approx.)
Wedge
- Standard: Single 12-inch high wedge
- Optional: 4-way wedge (22-inch wide bolt-on attachment)
Finish
- Powder-coated black
Included
- Hydraulic hoses
- Flat-face quick disconnect couplers
Warranty
- 1-year limited warranty
