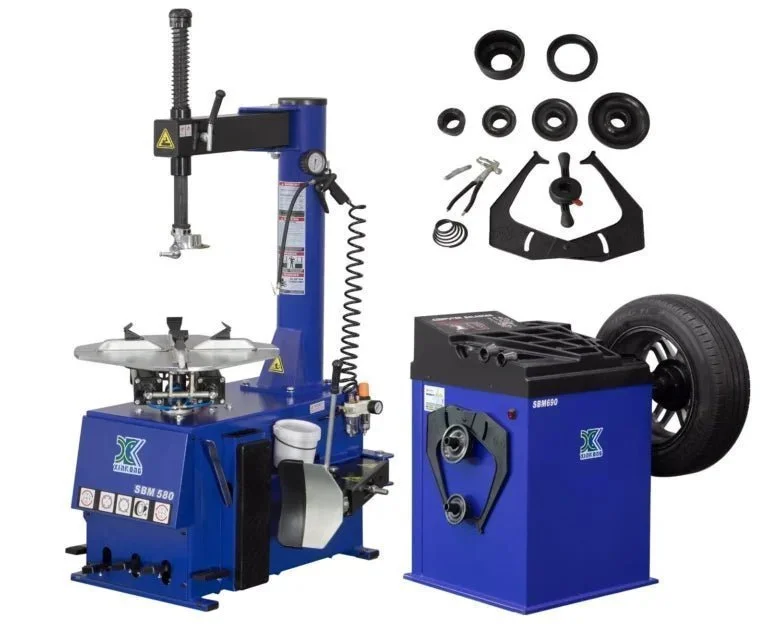

The 2.0 HP Tire Changer & Wheel Balancer Machine Combo (Models 580 & 690) combines a semi-automatic tire changer with an electronic wheel balancer for servicing a wide range of passenger vehicle wheels and tires.
580 Semi-Automatic Tire Changer
The tire changer is powered by a 2.0 HP motor and is designed to handle a variety of tire sizes. Optional adapter kits allow compatibility with motorcycle tires. A dual turntable foot pedal provides convenient operation, while the pneumatic bead breaker delivers up to 5,600 lbs. of force for efficient tire removal. The machine features a steel mount head, clamp protectors, and a durable powder-coated finish.
Specifications:
- Motor: 2.0 HP
- Voltage: 110V
- Rim Clamping Range (Outside): 10–18 in.
- Rim Clamping Range (Inside): 12–20 in.
- Maximum Tire Diameter: 37 in. (960 mm)
- Maximum Wheel Width: 12 in.
- Bead Break Force: 5,600 lbs.
- Operating Pressure: 120–145 psi (8–10 bar)
- Includes: Steel mount head and 4 clamp protectors
- Finish: Blue powder coat
- Shipping Weight: 500 lbs.
690 Electronic Wheel Balancer
The electronic wheel balancer is designed for accurate wheel balancing with a balancing precision of ±1 gram. It accommodates a wide range of wheel sizes and completes balancing cycles in approximately 4–7 seconds. The machine operates at a noise level below 70 dB and is configured for 110V, 60Hz power.
Specifications:
- Rim Diameter Capacity: 10–24 in.
- Rim Width Capacity: 1.5–20 in.
- Maximum Wheel Diameter: 44 in. (1117 mm)
- Maximum Wheel Weight: 155 lbs.
- Balancing Accuracy: ±1 g
- Cycle Time: 4–7 seconds
- Noise Level: Less than 70 dB
- Power Supply: 110V, 60Hz
